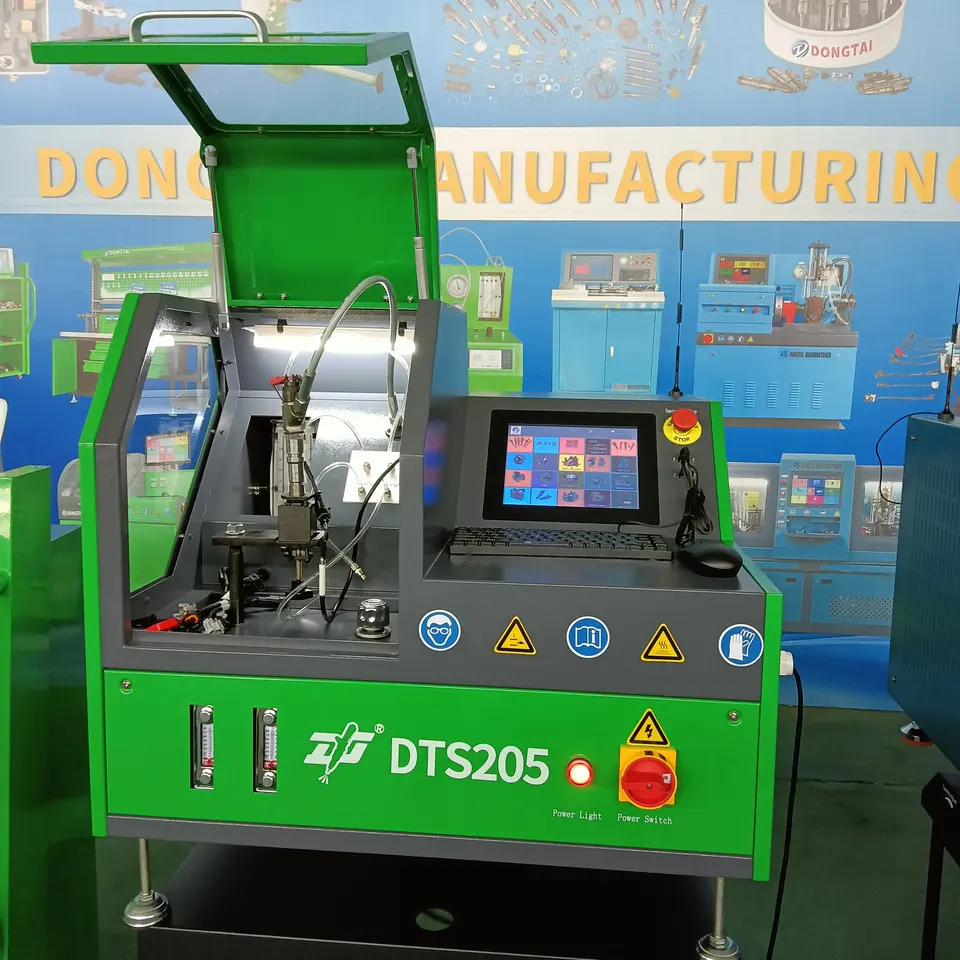

DTS205 / EPS205 Common Rail Injector Test Bench
Content
FUNCTION
1.Test injector brands：BOSCH, SIEMENS, DELPHI, DENSO Piezo injector testing(option function)
2. Test 1 piece of injector.
3. Test the Leakage performance of common rail injector.
4. injection oil quantity and back oil quantity (pre-injection, Idling, emissions, full load)
5. Electronic fuel delivery measuring, automatic testing and detection.
6. Data can be searched and saved.
>>>TECHNICAL PARAMETER
1. output power:1.5KW
2. power voltage:220V 1phase
3. motor speed: 0-3000RPM
4. Oil pressure:0-2000bar
5. flow measure range: 0-600ml/1000times
6. flow measurement accuracy: 0.1ml
7. temperature control range: 40+-2
