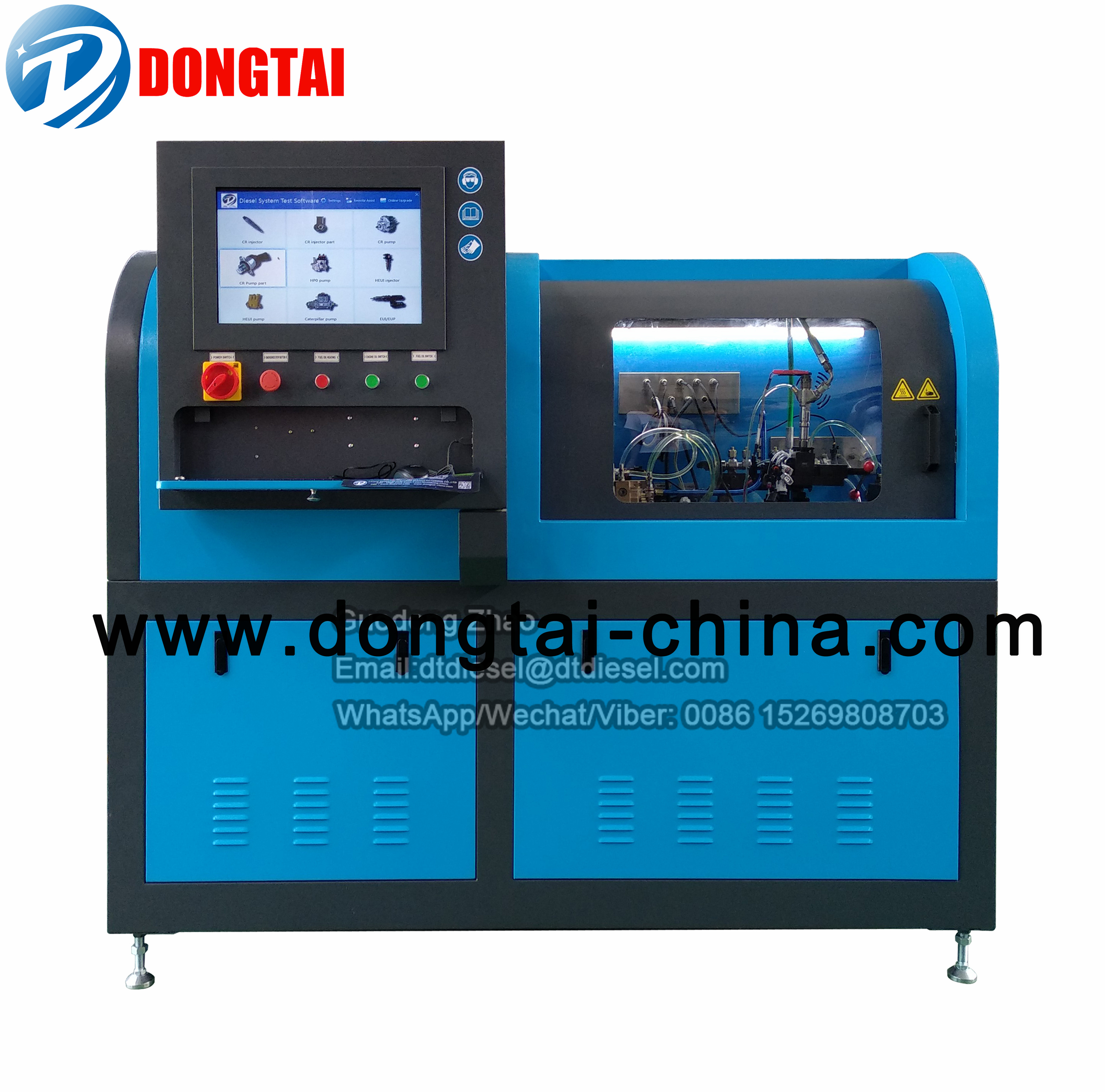

CR819 Common Rail, 320D Pump, HEUI Test Bench
Content
Ø Function:
1. CR injector and pump testing2. HEUI testing
3. HEUI pump testing,4. CAT 320D pump testing,5. 2 oil road, (diesel + engine oil)6. QR coding,
|
Main power |
380V AC 220V AC(Optional） |
|
|
Phase |
Three Single（optional） |
|
|
Frequncy |
50Hz/60Hz |
|
|
Current |
45A(MAX) |
|
|
Mian motor |
11KW |
|
|
Main motor rotation |
0-4000 RPM/MIN |
|
|
Oil motor HP/ Flow |
0.19KW / 13L/MIN |
|
|
Diesel motor HP /Flow |
0.19KW / 13L/MIN |
|
|
Control circuit voltage |
DC12V/24V 350W |
|
|
ECU internal voltage |
0-200V DC（MAX) |
|
|
Oil tank volume |
30L |
|
|
Diesel Tank volume |
52L |
|
|
Temperature control |
Heating/Forced cooling |
|
|
Max rail pressure |
180MPa 240MPa（Optional） |
|
|
Flowmeter（injection） |
4—550ml/min |
|
|
Flowmeter（fuel supplying） |
1—400L/H |
|
|
Flowmeter（fuel flow back） |
1—400L/H |
|
|
Flowmeter（Oil） |
5—600L/H |
|
