Content

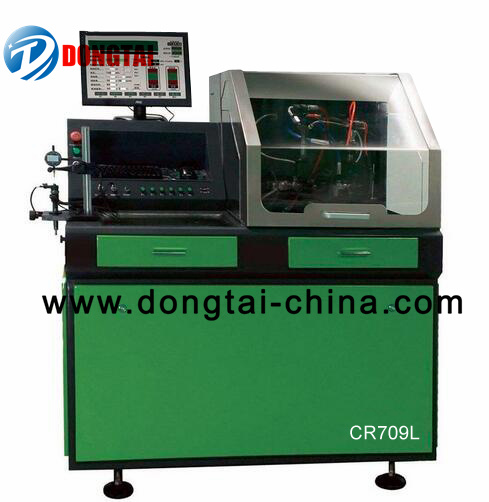

CR709L common rail injector test bench, use import the flow sensor for the measurement means, it can test common rail  injector  and common rail pump.

The device uses high-power inverter and motor, heavy plate casting table for different power and torque of the common rail pump test. It can test Bosch, Denso, Delphi, Siemens, CAT  and other brands of electronic control fuel injector, oil flow measurement using imported flow sensor. Measurement parameters, rail pressure, speed, temperature, fuel, computer display.

The test bench has independent diesel active oil supply system, the pressure size can be adjusted with different adapters.

Performance Introduction:

1. Imported flow sensor test flow, reliable quality, good repeatability.

2. Comprehensive testing. Can test injector full load, medium speed, idle, pre-spray and other conditions of the fuel injection

3. Use a wide range. Can detect Bosch, Denso, Delphi, Siemens, CAT, such as injector

4. Low noise, the host uses frequency control, low speed and high torque, speed prefabrication, low noise, no impact.

5. Advanced control, a key to select, the whole process of automatic detection

6. Massive data, a total of more than 2,700 kinds of fuel injector data.

7.  data management. The user can according to the guidelines , add their own fuel injector technical indicators, especially for the new fuel injector standard fuel calibration

8.With printer It can print the test result

9.Armature stroke AHE test

Technical Parameters

1. Rated output power: 5.5KW

2. Electronic power: 3PHASE 380V 50HZ OR 3PHASE 220V 60HZ

3. Motor speed: 0-4000RPM

4. Pressure adjustment: 0-2200bar

5. Fuel temperature: 40 ±2℃

6.Flow testing range:0-600ml/1000times

7.Flow measurement accuracy:0.1ml

8. Filter accuracy: less than 5um

9.Cooling system: fan or forced cooling

10. Fuel tank capacity: 40L

11.. Size: 1300MM * 900MM * 1350MM

9. Weight: 400kg

10. With 19-inch display

11. Adopt interference-free Logitech mouse
